How To Find Your RC Plane’s Center Of Gravity? [Explained!]

Whether you’re a novice or an experienced RC plane pilot, understanding and properly managing your plane’s center of gravity (CG) is crucial for safe and successful flights. The center of gravity will affect your RC plane’s performance and could result in a crash, depending on the CG variation.

The best way to find your RC plane’s center of gravity is to use a CG machine or use the finger-and-eyeball method. Balance the aircraft on your fingertips with your fingers on either wing surface a short distance from the fuselage. The CG needs adjustment if the aircraft’s nose or tail dips down.

how-to-find-rc-planes-center-of-gravity

Our guide will help you through the process of finding your RC plane’s center of gravity step by step. We will introduce you to the importance of a balanced CG, the effects of an incorrect CG, and how to locate the recommended CG point for your specific model. We will explore different methods of measuring the CG accurately and techniques for adjusting it if necessary.

The Importance Of Your RC Plane’s CG

The center of gravity refers to the point at which an aircraft’s weight is evenly distributed, resulting in balanced flight characteristics.

The center of gravity is a fundamental aviation concept that applies to full-scale and remote-control (RC) planes. It represents the point where the aircraft’s total weight is considered to be concentrated or balanced. In simple terms, it is the average location of all the mass in the plane.

I highly encourage you to check out this article to learn how much weight an RC plane is capable of carrying.

The CG is typically expressed as a distance relative to a specific reference point, such as the wing’s leading edge or the aircraft’s nose. It is crucial to note that the CG position is measured along the aircraft’s longitudinal axis, from the nose to the tail.

Achieving the correct CG is essential because it directly affects how the plane responds to control inputs, stability, and maneuverability. An improperly balanced CG can lead to unpredictable flight behavior, decreased control, and potential crashes.

Understanding and managing your RC plane’s CG is about safety and enhancing your overall flying experience. A properly balanced CG can optimize your plane’s performance, making it more responsive, stable, and enjoyable to fly.

We will equip you with the knowledge, skills, and processes to ensure your RC plane’s CG is dialed in correctly and how to make adjustments for optimal performance.

How Does CG Affect RC Plane Flight Dynamics?

Understanding the significance of CG in RC plane flight dynamics is essential for safe and stable flights. The CG location directly influences several characteristics that affect the aircraft’s overall performance.

  • Stability. A properly balanced CG ensures good stability during flight. When the CG is correctly positioned, the plane maintains its attitude and is less likely to pitch or roll unexpectedly.
  • Control. The CG position affects the control responsiveness of the aircraft. If the plane’s center of gravity is too far forward, the plane may feel sluggish and unresponsive to control inputs. On the other hand, if the CG is too far back, the plane may become overly sensitive and challenging to control.
  • Maneuverability. The CG plays a role in the maneuverability of the RC plane. A well-balanced CG allows for smoother, more precise turns, loops, rolls, and other aerobatic maneuvers.
  • Stall Characteristics. The CG position influences the plane’s stall behavior. An aircraft with a CG that is too far forward may experience a more abrupt and unpredictable stall, while a CG that is too far back can result in a mushy or reluctant stall.

A poorly balanced CG can lead to reduced control responsiveness. It becomes challenging to execute precise maneuvers, and the plane may feel unresponsive to control inputs, making it harder to maintain a desired flight path.

Flying with an incorrectly balanced CG increases the risk of accidents and crashes. It can lead to unpredictable flight behavior, making it harder to maintain control and potentially resulting in the loss of the aircraft.

An incorrect center of gravity can result in a nose-heavy or a tail-heavy RC plane. A nose-heavy scenario will affect the plane’s performance, but a tail-heavy situation will definitely result in a crash that could seriously damage the aircraft.

Understanding the importance of CG and its effects on flight dynamics highlights the significance of accurately determining and maintaining the proper CG for your RC plane.

Locating The Recommended CG Point For Your RC Plane

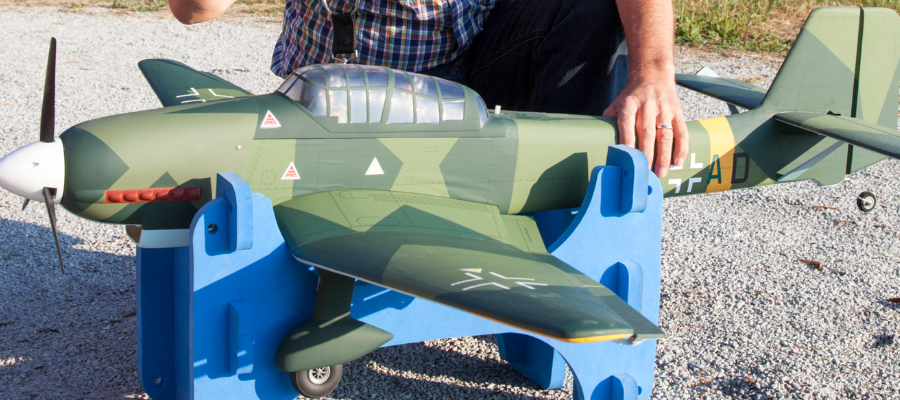

An RC war plane on a stand

Locating the recommended center of gravity (CG) is important to ensure proper balance and flight performance for your RC plane.

The manufacturer of your specific model provides guidelines for the CG position, and it is crucial to follow their recommendations.

Start by consulting the manufacturer’s manual, documentation, or any available online resources specific to your RC plane model. Look for information regarding the recommended CG range.

The manual may provide a numerical range, such as a percentage of the wing chord or a specific distance from a reference point.

Understanding the manufacturer’s recommended CG range gives you a starting point for determining the CG position. It serves as a valuable reference to ensure your RC plane’s stability and performance align with the intended design.

Within the manufacturer’s recommended CG range, a specific CG point usually provides the best overall flight characteristics for your RC plane. The manual or documentation may indicate this specific point using measurements, markings on the aircraft structure, or a reference to a particular component.

Common reference points for locating the CG include the leading edge of the wing, a specific point on the fuselage, or a designated CG mark provided by the manufacturer. Some RC plane models have pre-determined CG locations marked on the wings or fuselage.

Carefully follow the instructions provided in the manual to identify the specific CG point for your RC plane model. Take note of the reference point and any additional measurements or guidelines mentioned.

This point indicates the ideal location of where the center of gravity SHOULD be for your aircraft. Measuring the actual center of gravity will let you know how far the plane deviates from this recommendation and the adjustments you must make.

Remember that while the manufacturer’s recommendations are a great starting point, personal preferences, and flying style can influence the final CG position. (Check out this guide where I explain whether or not RC planes are hard to fly.)

However, making minor adjustments within the recommended CG range is generally recommended rather than straying too far from it.

If you’re curious about the thrilling aspects of RC planes, such as their speed and altitude capabilities, I invite you to dive into this comprehensive post on how fast and how high RC can planes go. This article provides in-depth insights into the exciting world of RC aviation, shedding light on the speeds and altitudes that these remarkable aircraft can achieve.

Measuring And Adjusting The Your RC Plane’s CG

Accurately measuring and adjusting your RC plane’s center of gravity (CG) is crucial for achieving optimal flight performance.

There are various methods to measure the CG of your RC plane. A CG machine is a dedicated tool specifically designed to measure the CG of RC planes accurately. It typically consists of a balancing stand with a movable fulcrum and measurement scales.

A CG machine is a good option for larger RC aircraft, but my preferred method is the finger-and-eye method, which works sufficiently well for small and medium-sized RC planes.

Your RC plane must be correctly set up before you start your CG measuring process. The plane must be configured as if it is ready to fly, with the battery installed, or a full fuel tank, and all other components installed in the aircraft.

If you leave components out of the plane, you will get an inaccurate CG reading, giving you a false CG point, which can negatively affect the plane’s performance.

Balance the RC plane on your fingertips, with your fingertips placed as close as possible to the recommended CG points on either wing, a short distance from the fuselage.

By the way, if you’re curious about the relationship between RC plane size and ease of flying, I encourage you to read this insightful post on: Are Bigger RC Planes Easier To Fly?

RC planes with high wings can be balanced in the upright position on your fingers, and low-wing planes can be balanced in an upside-down position.

Eyeball the plane’s nose and tail, ensuring the two line up, more or less parallel to the floor. The plane is tail-heavy if the tail dips down while pivoting on your fingers. The RC plane is nose-heavy if the nose dips down and the tail pivots up.

For further information, check out our guides on RC plane tail heavy symptoms and RC plane nose heavy symptoms.

If the nose and tail do not line up, indicating an evenly balanced aircraft, you must adjust the aircraft’s balance to return the CG to the recommended location.

How To Adjust Your RC Plane’s Center Of Gravity

If the measured CG position deviates from the recommended CG point, adjustments are necessary to bring the CG back within the recommended range.

Here are some techniques for shifting the CG forward or backward.

  • Move the battery. Moving the battery inside the RC plane is one of the easiest ways to adjust the center of gravity. Move the battery in small increments to make the adjustment. If the CG is too far forward, move the battery slightly backward. Move the battery slightly toward the aircraft’s nose. if the CG is too far backward. Re-test the CG after each adjustment.
  • Adding or removing weight. Adding or removing weight strategically can also alter the CG position. Use weights, such as small lead weights or adhesive balance putty, to achieve the desired balance. Add weight to the aircraft’s nose to shift the CG forward and remove weight from the nose, or add weight to the tail to shift it backward.
  • Adjusting component positions. In some cases, adjusting the positions of components, such as the receiver, servos, or electronics, can help fine-tune the CG. Carefully move these items while ensuring their proper function and structural integrity.

Remember to record any changes made to the CG position, weights, or component adjustments for future reference.

When making CG adjustments, it is essential to maintain the structural integrity and stability of your RC plane. Do not add too much weight, which can affect the plane’s thrust-to-weight ratio, but rather find a way to adjust the CG by removing weight from either the tail or the nose.

Always ensure that all components and attachments, such as batteries, payloads, or additional equipment, are securely fastened to prevent any movement during flight. A battery that comes loose during flight can drastically alter the CG of the RC plane, resulting in a damaging crash.

Once you think you have the CG dialed in, it is important to take your RC plane for a test flight to see how it performs.

When you test-fly the aircraft, your can check how the plane responds to the controls and make final tweaks to the CG to achieve the maneuverability and responsiveness you prefer.

During the test flight, you can look for symptoms of a nose-heavy plane or evaluate whether the plane is showing symptoms of being tail heavy.

Pay close attention to the aircraft’s landing characteristics, which is the flight stage where many problems with the center of gravity will become evident.

CG Maintenance And Re-Evaluation On Your RC Plane

Maintaining and periodically re-evaluating your RC plane’s center of gravity (CG) is crucial for consistent and safe flight performance.

Over time, factors such as modifications, repairs, or component changes may affect the CG. This section highlights the importance of CG maintenance and re-evaluation.

I generally follow a protocol for re-evaluating an RC plane’s CG.

  • Regular inspections. Perform routine inspections of your RC plane to ensure the CG remains balanced. Check for any signs of damage, loose components, or changes in weight distribution that may affect the CG position.
  • Pre-Flight checks. Before each flight, conduct a pre-flight check, including verifying the CG position. Ensure the plane is properly balanced and the CG is within the recommended range. You may have installed the battery slightly off the ideal position, which can affect the CG. Checking the CG is a crucial pre-flight check, and using the finger and eyeball methods makes it quick and easy.
  • Make adjustments as needed. If you notice any changes in flight characteristics, stability, or control responsiveness, it may indicate a need for CG adjustments. Use the same techniques outlined earlier to make necessary adjustments to the CG position.
  • After RC plane modifications. Modifying your RC plane, such as adding new equipment, upgrading components, or altering the structure, can affect the CG. Consider the added weight and adjust the CG accordingly.
  • After repairs to your RC plane. After repairing your RC plane, ensure the CG remains in the correct position. Check for any weight distribution or balance changes caused by the repairs, and make adjustments as necessary.
  • Component changes. Replacing or upgrading components, such as the battery, receiver, or servos, may impact the CG. Always consider the weight and placement of new components to maintain the proper CG position.
  • Adding a payload. Adding cargo to your RC aircraft can shift the CG. Always check that the CG is within the recommended range after adding a payload to the aircraft.

It is important to re-check your RC plane’s CG frequently, especially after making any change to the aircraft’s configuration. Performing this simple test can make the difference between a successful, enjoyable flight or a devastating crash.

Conclusion

Finding and maintaining the proper center of gravity (CG) for your RC plane is essential for safe, stable, and enjoyable flights. It is important to understand the CG, locate the recommended CG point, measure and adjust the CG accurately, conduct test flights, and fine-tune the CG position.

Regularly inspect and re-evaluate the CG, especially after modifications, repairs, or component changes. Ensure the CG remains within the recommended range for optimal flight performance. A properly balanced RC plane is crucial to get the most performance out of the aircraft and enjoying your flying experience.
