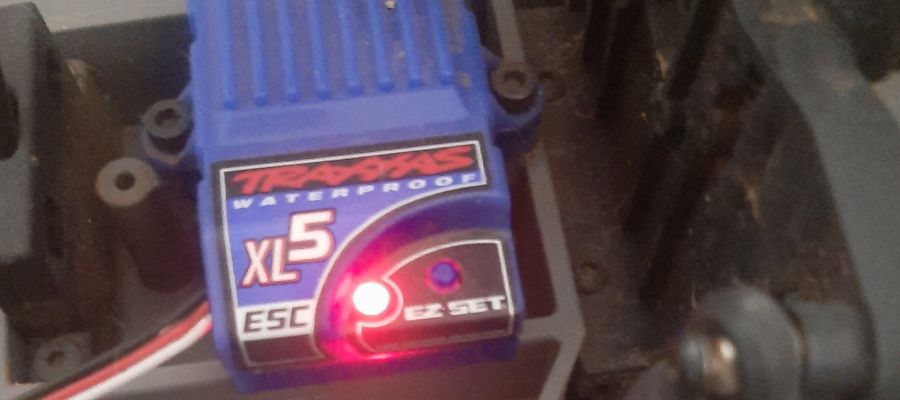

If you’re a Traxxas RC car owner, you may have come across a Traxxas ESC blinking red. This problem can be frustrating, especially when you’re eager to hit the road or track with your beloved RC vehicle. So let’s look into the reasons your Traxxas ESC might be blinking red and provide all the solutions to help you resolve this issue and get back to the thrill of RC racing.
Traxxas ESC blinks red due to low voltage, overheating, motor malfunction, or throttle calibration issues. Low voltage protection prevents battery damage. Overheating triggers thermal protection. A malfunctioning motor draws excess current. Incorrect throttle calibration causes misinterpretation.

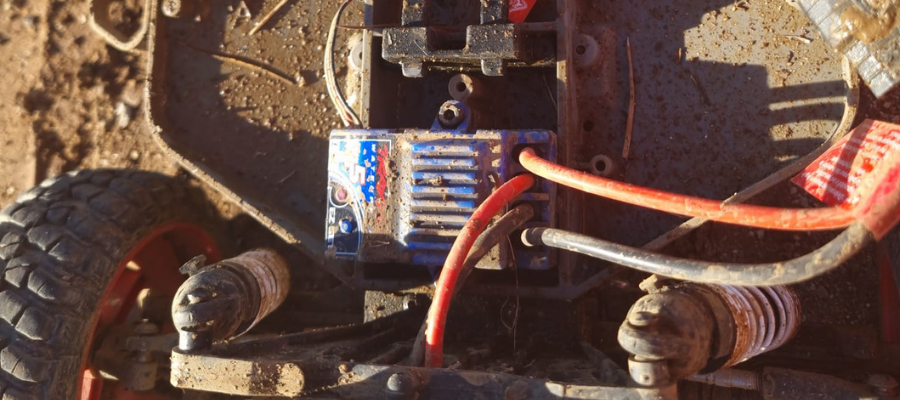

The Traxxas ESC is a crucial component of your RC vehicle, controlling the speed and acceleration of the motor. It regulates the power flow from the battery to the motor and ensures smooth operation and protection of the electronic system. When the ESC blinks red, it’s a warning sign that something isn’t right.
Reasons for a Blinking Red ESC
#1. Low Voltage Protection
The most common reason for a Traxxas ESC to blink red is low voltage protection. The ESC is designed to monitor the battery voltage to prevent complete discharging, which can damage both the battery and the ESC. When the battery voltage drops to a certain threshold, the ESC will blink red to show that it’s time to recharge or replace the battery.
#2. Overheating
Another possible cause of a blinking red ESC is overheating.
RC vehicles generate heat during operation, and if the ESC becomes too hot, it will activate its built-in thermal protection mechanism. This protection feature safeguards the ESC from damage by reducing power output and causing the red blinking light.
To learn more, check out this detailed guide to know the top 13 reasons why RC motors and ESC burn up.
#3. Motor Malfunction
A malfunctioning motor can also trigger a blinking red ESC. If the motor experiences a mechanical issue or becomes jammed, it can draw excessive current, which the ESC interprets as a fault. So the ESC enters a protective state and shows the problem through the blinking red light.
To explore more about RC motor issues, I highly encourage reading this guide on how to identify if your RC motor is bad.
#4. Throttle Calibration Issue
Improper throttle calibration can lead to a blinking red ESC. When the ESC is not calibrated correctly to match the transmitter’s throttle range, it may misinterpret the throttle inputs, resulting in an error condition. The blinking red light represents this error.
Troubleshooting Steps
To resolve the blinking red ESC issue, follow these troubleshooting steps:
#1. Check Battery Voltage
Start by checking the voltage of your RC vehicle’s battery using a reliable battery voltage checker. If the voltage is below the recommended threshold, recharge or replace the battery to eliminate the low voltage protection trigger.
#2. Inspect the ESC for Overheating
Carefully examine the ESC for signs of overheating, such as discoloration or a burnt smell. If you notice any indications of overheating, allow the ESC to cool down before attempting to use the vehicle again. You can also consider installing additional cooling hardware, such as a fan or heat sinks, to prevent future overheating issues.
Read this guide where I explain what you need to do when your RC motor overheats.
#3. Examine Motor Connections
Inspect the motor connections to ensure they are secure and properly soldered. Loose or faulty connections can disrupt the flow of power and trigger a blinking red ESC. If you find any loose or damaged wires, re-solder or replace them accordingly.
#4. Calibrate the Throttle
Throttle calibration is crucial for proper ESC operation. Consult your Traxxas ESC’s user manual or the manufacturer’s website for detailed instructions on how to calibrate the throttle correctly.
Advanced Troubleshooting
If the blinking red ESC issue persists even after following the basic troubleshooting steps, consider these advanced troubleshooting techniques.
Checking for Short Circuits
Inspect the wiring and connections for any signs of short circuits. Damaged wires, exposed metal contacts, or corroded insulation can lead to short circuits that trigger the blinking red light. Repair or replace any faulty components to eliminate the possibility of a short circuit.
I highly recommend checking out this guide to learn how to identify if your RC ESC has gone bad.
Test the ESC and Motor Separately
To identify whether the issue lies with the ESC or the motor, you can perform separate tests. Disconnect the motor from the ESC and connect a known-working motor to the ESC to see if the blinking red light persists. Similarly, test the motor separately to check for any mechanical problems. This process can help isolate the source of the issue and guide you toward an appropriate solution.
Holding The ESC Button For Too Long
Holding the ESC (Electronic Speed Control) button for too long when switching off your RC vehicle can cause the blinking red light issue.
The ESC button serves as a power switch for your RC vehicle. When you press and hold the button, it cuts off power to the ESC and the motor. However, if you hold the ESC button for an extended period, it can trigger a specific programming mode in the ESC called the “Setup Mode.”
In the Setup Mode, the ESC attempts to communicate with the transmitter to receive programming instructions. However, since the transmitter is not actively sending any signals during the power-off process, the ESC cannot establish a proper connection. As a result, it interprets the lack of communication as a fault condition, leading to the blinking red light.
The blinking red light caused by holding the ESC button for too long is a sign that the ESC is in an error state because of the failed connection with the transmitter. We commonly observed this issue in certain Traxxas ESC models.
To prevent this problem, it’s important to avoid holding the ESC button for an excessive duration when powering off your RC vehicle. Instead, follow the recommended procedure for switching off your particular ESC model. Typically, this involves a brief press and release of the ESC button to ensure a clean power-down triggering no unintended programming modes.
In Summary
If you encounter a blinking red light on your Traxxas ESC, it indicates a problem that needs to be addressed. The possible causes include low voltage protection, overheating, motor malfunction, and throttle calibration issues.
To fix the blinking red ESC issue, you can follow these troubleshooting steps:
- Check the battery voltage and recharge or replace the battery if it’s below the recommended threshold.
- Inspect the ESC for signs of overheating and allow it to cool down before using the vehicle again. Consider installing additional cooling solutions if necessary.
- Ensure the motor connections are secure and properly soldered. Replace or re-solder any loose or damaged wires.
- Calibrate the throttle according to the manufacturer’s instructions to eliminate throttle misalignment errors.
If the issue persists, you can try advanced troubleshooting techniques, such as checking for short circuits and testing the ESC and motor separately to identify the source of the problem.
